RF Coaxial Adapters

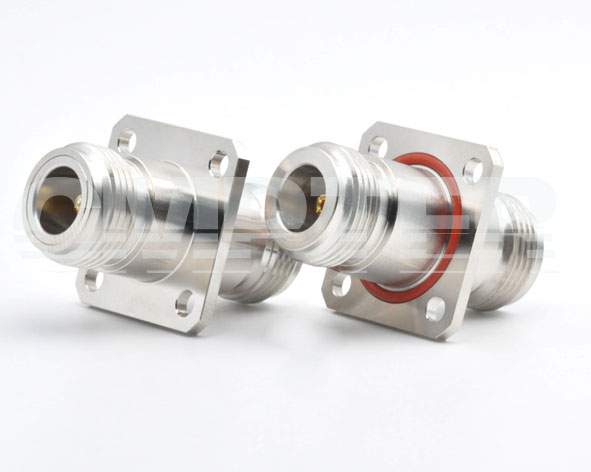

N Female to N Female 4 Hole Flange, DC to 11GHz

PN: A-NF-NF-489
A-489-001
PRODUCT OVERVIEW
Interface Type: N-Type
Gender: N female to N female 4 Hole flange
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 11 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 52g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
