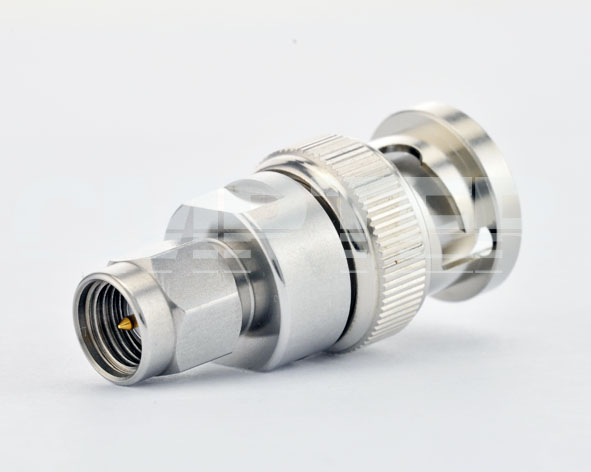

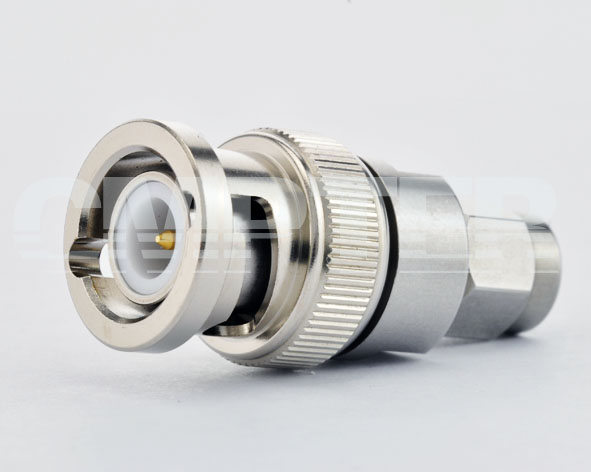

BNC Male to SMA Male test Adapter, DC to 8GHz
PRODUCT OVERVIEW
| Interface Type: |
BNC to SMA |
| Gender: |
BNC male to SMA male |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 8 GHz |
| VSWR |
1.15:1 |
| Temperature Range: |
-55 °C ~ +165 °C |
| Weight: |
30g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PTFE & PEI |
|
