RF Coaxial Adapters

1.85mm Female to 1.85mm Female Precision Adapter

PN: P-1.85F-1.85F-207

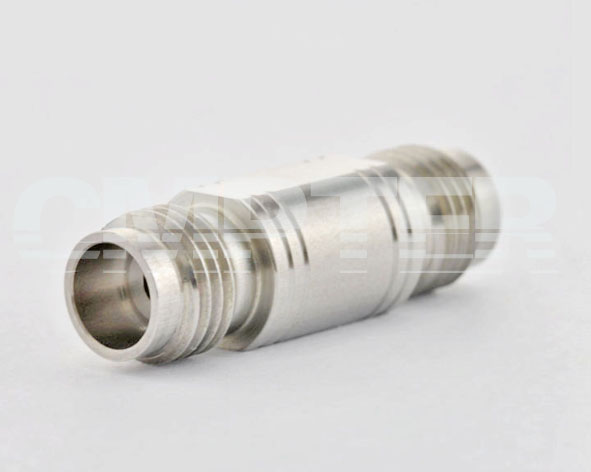

1.85mm female adapter

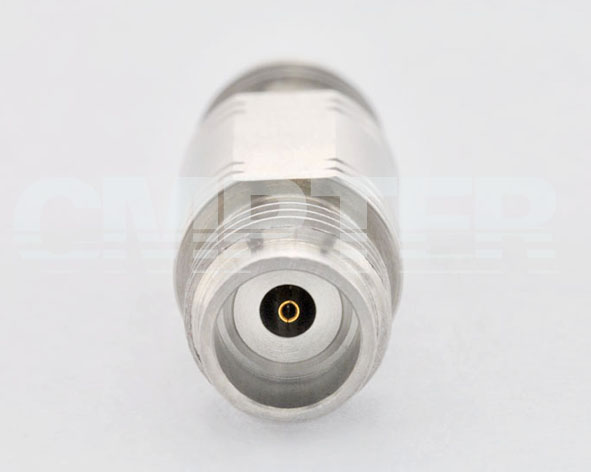

1.85mm female to female adapter
PRODUCT OVERVIEW
Interface Type: 1.85mm
Gender: 1.85mm Female to 1.85mm Female
RoHS certificate: Complaint

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
  • Test Report [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 65 GHz
    VSWR 1.25:1
    Temperature Range: -55 °C ~ +165 °C
    Weight: 6g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
