RF Coaxial Adapters

2.92mm Male to 2.92mm Waterproof Bulkhead Female Precision Adapter

PN: P-2.92M-2.92F-227

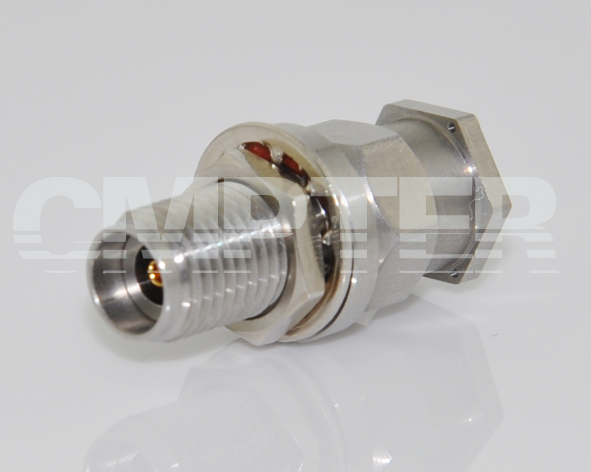

2.92mm male to femle bulkhead adapter

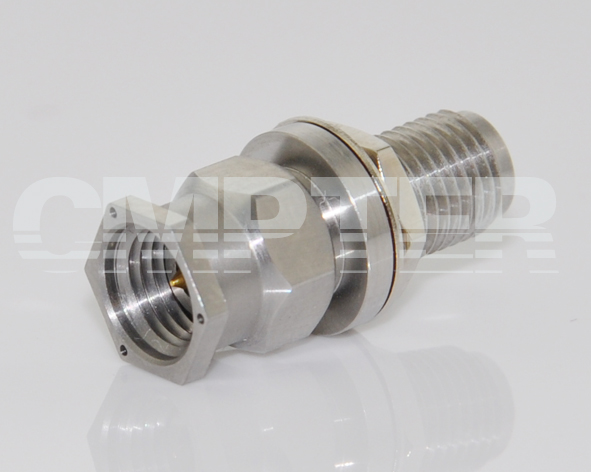

2.92mm female to 2.92mm male
PRODUCT OVERVIEW
Interface Type: 2.92mm
Gender: 2.92mm male to 2.92mm female, waterproof bulkhead
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 40 GHz
    VSWR 1.20:1
    Temperature Range: -55 °C ~ +165 °C
    Weight: 5.5g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
