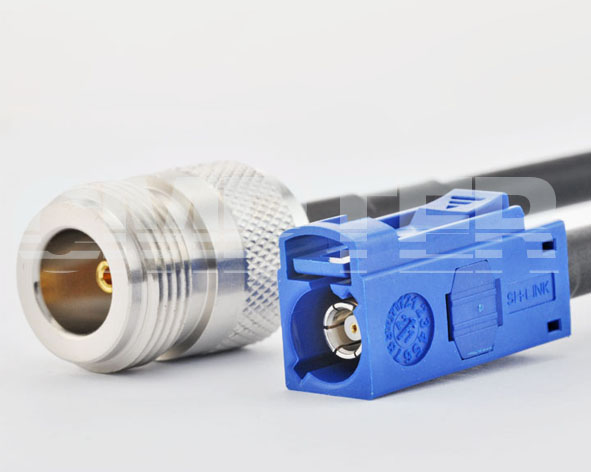

N Female to FAKRA "C" & "Z"Type SMB Plug for LMR200-UF Ultraflex Cable
PN: CA200U-NF-FKSMBM-250mm-2958
PRODUCT OVERVIEW
| Series: |
Fakra C type SMB to N female crimp LMR200 ultra flexible cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 2 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
50g |
| Durability (Matings): |
SMB Jack >500 |

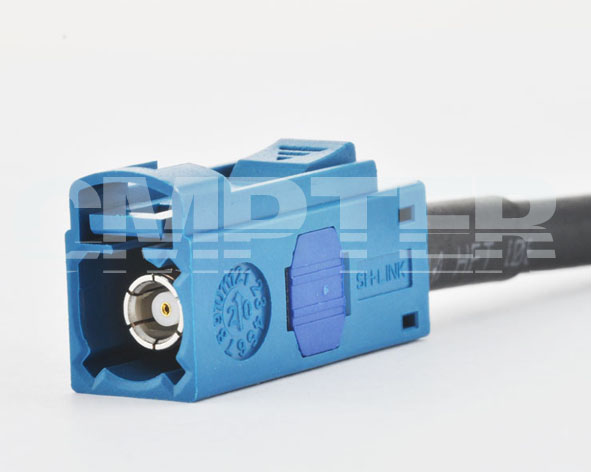

| Connectors: FAKRA SMB Jack Crimp LMR200 Ultra flex cable [P/N: 70-03-1M17-126C] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Outer Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| Connectors: N Straight Female Crimp for LMR200 Cable [P/N: 50-02-1M17-205] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel plated |
| Outer Contact: |
Phosphor Bronze |
Nickel plated |
| Insulator: |
PTFE |
