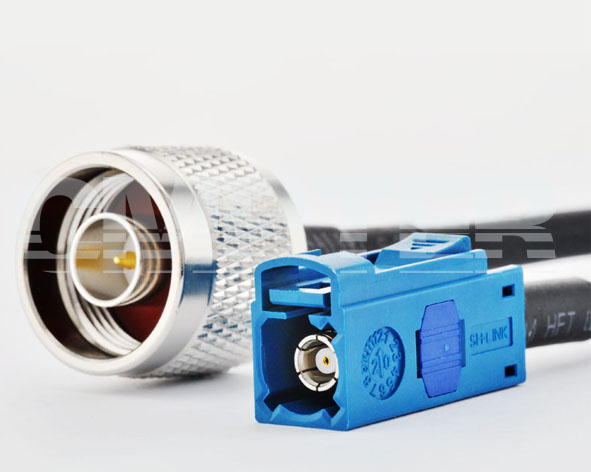

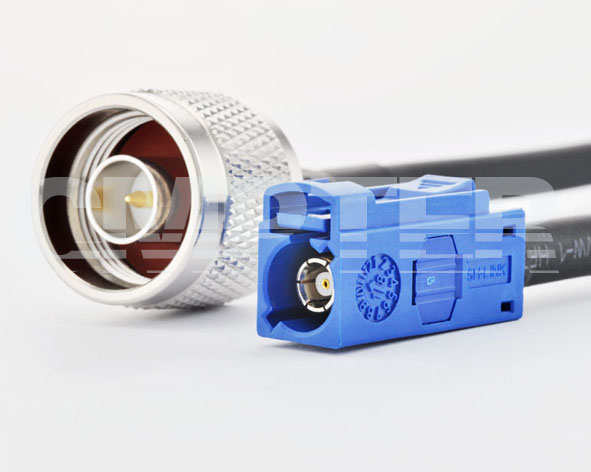

N Male to FAKRA "C" & "Z"Type SMB plug for LMR200-UF Ultraflex Cable
PN: CA200U-NM-FKSMBM-250mm-2959
PRODUCT OVERVIEW
Series: |
Fakra C & Z type SMB to N male crimp LMR200 ultra flexible cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 2 GHz |
Withstanding Voltage: |
≥250 V |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
50g |
Durability (Matings): |
SMB Jack >500 |
Connectors: FAKRA SMB Jack Crimp LMR200 Ultra flex cable [P/N: 70-03-1M17-126Z] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Gold-plated (Nickel underplated) |
Outer Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
Insulator: |
PTFE |
|
Connectors: N Straight Male Crimp for LMR200 Cable [P/N: 50-03-1M17-122] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel plated |
Outer Contact: |
Phosphor Bronze |
Nickel plated |
Insulator: |
PTFE |
