N Waterproof Bulkhead Female to U.FL MHF Right Angle Plug for RG178 Cable

PN: CA178-NFBW-UFL-75mm-3179

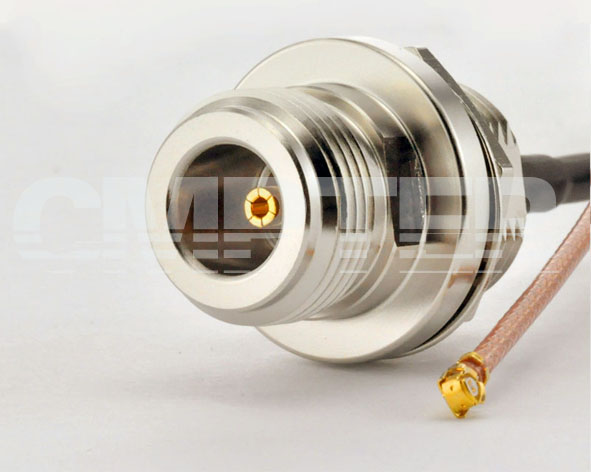

CA178-NFBW-UFL-01

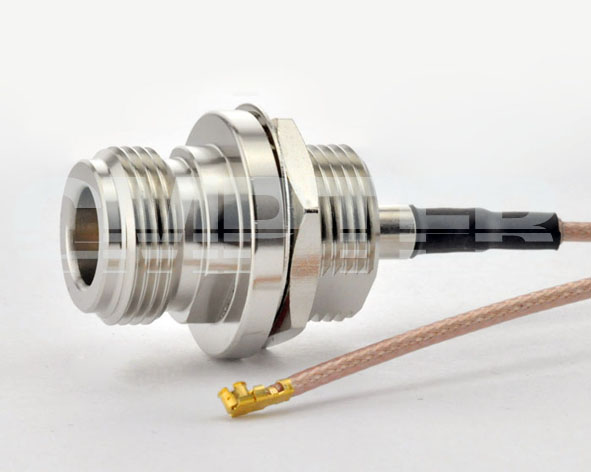

CA178-NFBW-UFL-02
PRODUCT OVERVIEW
Series: N bulkhead Female to U.FL for RG178 cable
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Withstanding Voltage: ≥250 V
Temperature Range: -40 °C ~ +90 °C
Weight: 39g
Durability (Matings): N bulkhead Female >500
U.FL connector >30

Material Data
Connector 1: N Straight Waterproof Bulkhead Female Solder for RG178 Cable [P/N: 50-02-1C12-306]
Piece Part Base Material Plating
Center Contact: Phosphor Bronze Gold-plated (Nickel underplated)
Body: Brass Nickel Plated
Insulator: PTFE
