RF Cable Assembly

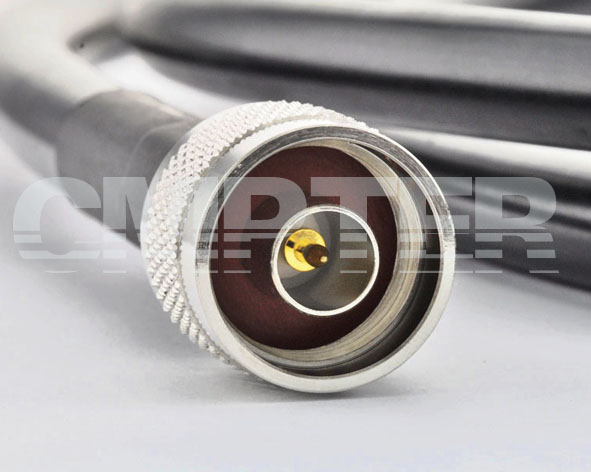

N Male Connector crimp for LMR400 Cable Assembly

PN: CA400-NM-NM-2M-2233
CA400-NM-02
PRODUCT OVERVIEW
Series: N Male to N Male for LMR400 cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50 Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥1000 V
    Temperature Range: -25 °C ~ +70 °C
    Weight: 2000g
    Durability (Matings): N-type Male >500
    Material Data
    Connectors: N Male Connector Crimp for LMR400/RG214 Cable [P/N: 50-03-1M01-006]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass Nickel plated
    Coupling Nut: Brass Nickel Plated
    Insulator: PTFE
