SMA male to SMA male crimp RG174 cable assembly

PN: CA174-SMAM-SMAM-XX-XXXX

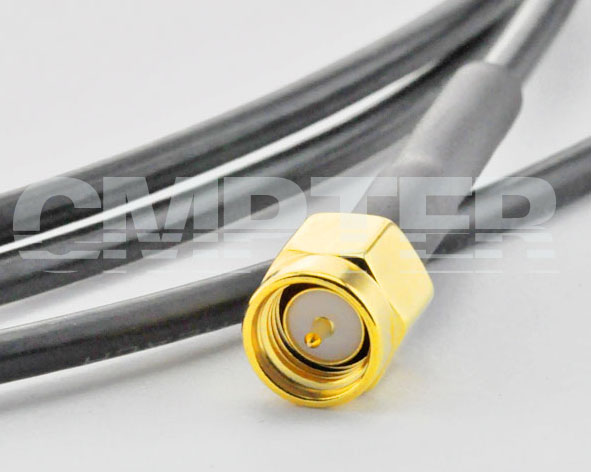

CA174-SMAM-SMAM-03

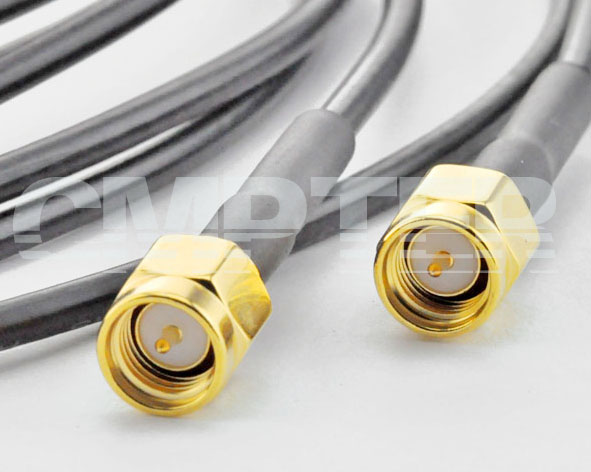

CA174-SMAM-SMAM-04
PRODUCT OVERVIEW
Series: SMA Male to SMA Male crimp for RG174 cable
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Withstanding Voltage: ≥250 V
Temperature Range: -55 °C ~ +125 °C
Weight: 10g
Durability (Matings): SMA Right Angle Male >500

Material Data
Connector 1: SMA Male Crimp for LMR100/RG174/RG316 Cable  [P/N: 60-03-1M00-003]
Piece Part Base Material Plating
Center Contact: Brass Gold-plated (Nickel underplated)
Body: Brass Gold-plated (Nickel underplated)
Insulator: PTFE
