RF Cable Assembly

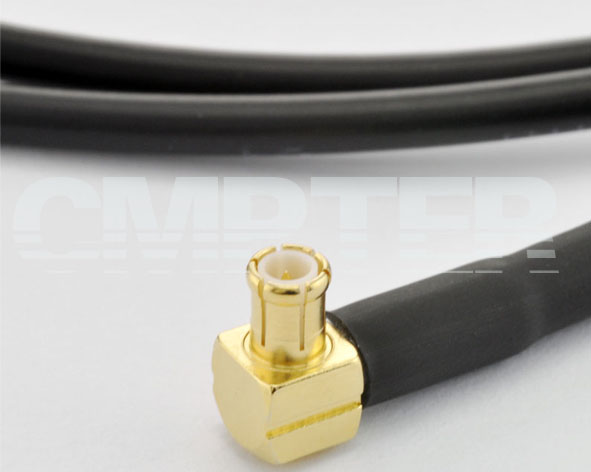

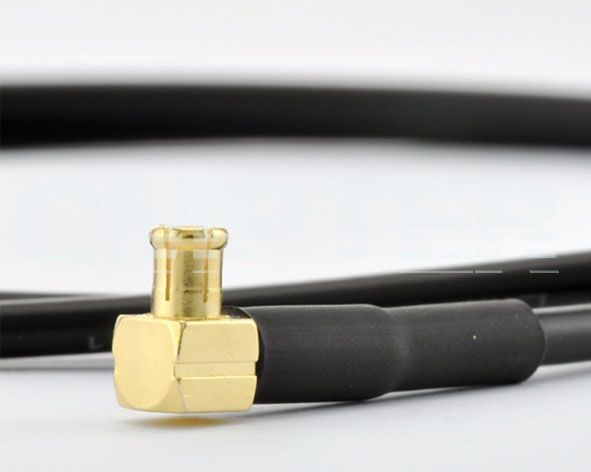

MCX Right Angle Male to MCX Right Male crimp for LMR100 Cable assembly

PN: CA100-MCXRAM-MCXRAM-70cm-1557
CA100-1958-02
CA100-1958-03
PRODUCT OVERVIEW
Series: MCX Right Angle Male to MCX Right angle male crimp for RG174 cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥250 V
    Temperature Range: -55 °C ~ +125 °C
    Weight: 38g
    Durability (Matings): MCX Right Angle Male >500

    Material Data
    Connector : MCX Connector Right Angle Male Crimp for LMR100/RG174/RG316 Cable [P/N: 30-13-1M00-005]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass & Phosphor Bronze Gold-plated (Nickel underplated)
    Insulator: PTFE
