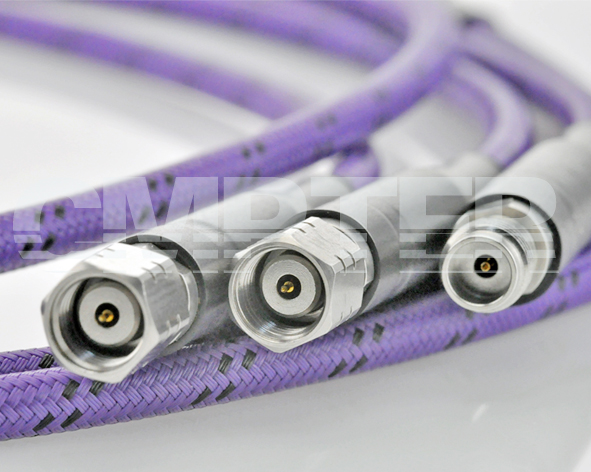

1.85mm Male to 1.85mm Female Phase Match test cable, DC to 67GHz
PN: CA500AL-1.85M-1.85F-1M-3186
PRODUCT OVERVIEW
| Series: |
1.85mm male to 1.85mm Female for CTAL500 phase match cable, DC to 67GHz, Test cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 67 GHz |
| VSWR |
≤1.30 |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
80g |
| Durability (Matings): |
1.85mm male >500 |
| 1.85mm female >500 |
| |
|
| Material Data |
| Connector 1: 1.85mm Male Connector Solder for CTAL-500 phasse match Cable [98-02-2M99-024] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI |
|
| |
| Connector 2: 1.85mm Female Connector Solder for CTAL-500 phase match Cable [98-03-2M99-023] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI |
|
