RF Cable Assembly

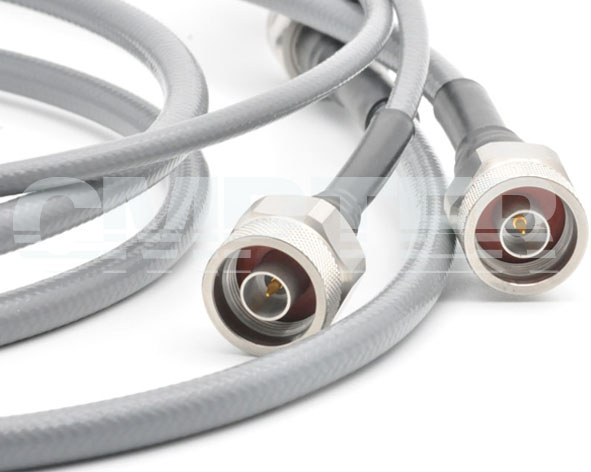

N Male connector Test Cable Assembly with small Attenuation, DC to 18GHz

PN: CA800TB-NM-NM-XXX-XXX
NM-TEST-01
PRODUCT OVERVIEW
Series: N male to Type N female for CTFB-800 cable, DC to 18GHz
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18 GHz
    VSWR ≤1.30
    Temperature Range: -55 °C ~ +125 °C
    Weight: 2kg
    Durability (Matings): Type N female >500
      type N male >500

    Material Data
    N Male Connector Solder for CTFB-800 cable [PN: 50-03-2M73-166]
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PTFE
