RF Cable Assembly

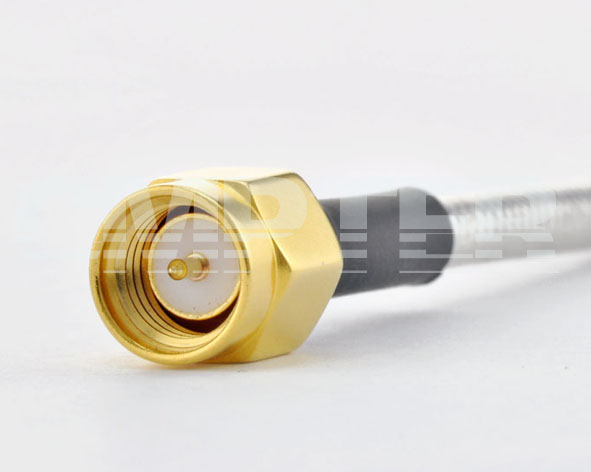

SMA Male to SMA Male solder.141 RG402 Cable Assembly, DC to 18GHz

PN: CA141HF-SMAM-SMAM-100mm-2831
CA141-2831-001
PRODUCT OVERVIEW
Series: SMA Male Connector for .141 cable, DC to 18GHz
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • Test Report [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18 GHz
    VSWR ≤1.35
    Temperature Range: -55 °C ~ +165 °C
    Weight: 25g
    Durability (Matings): SMA male >500

    Material Data
    Connectors:  SMA Male Connectors Solder for RG402/.141 Cable [P/N: 60-03-2M11-001]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass Gold-plated (Nickel underplated)
    Coupling Nut: Brass Gold-plated (Nickel underplated)
