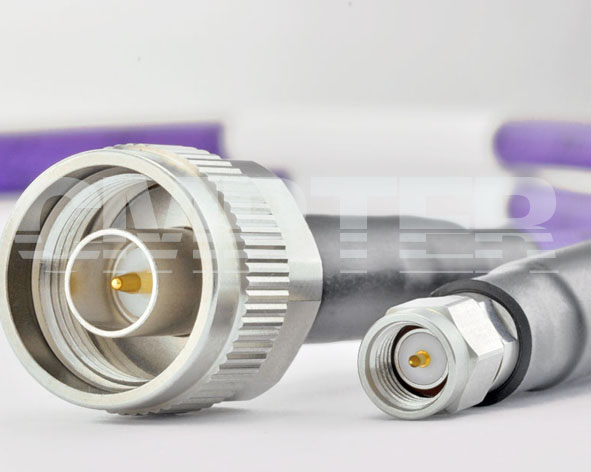

SMA male to N male Phase Match test cable assembly, DC to 18GHz
PN: CA520AL-NM-SMAM-50cm-2800
PRODUCT OVERVIEW
| Series: |
SMA male to N Male for 520AL test cable, Phase type |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 18 GHz |
| VSWR |
≤1.25 |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
150g |
| Durability (Matings): |
SMA male >500 |
| |
N male >500 |
| Material Data |
| Connector 1: SMA Male Connector Clamp for CTAL-520 Cable [PN: 60-03-2M66-209] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI, PTFE |
|
|
Connector 2: N Male Connector Clamp for CTAL-520 Cable [PN: 50-03-2M66-245]
|
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI |
|
