N SMale to SMA Male CTA-485 Test Cable Assembly, 36 inches
PRODUCT OVERVIEW
| Series: |
N male to SMA Male for CTA-485 cable, DC to 18GHz, Test cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 18 GHz |
| VSWR |
≤1.25 |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
190g |
| Durability (Matings): |
N-type male >500 |
| SMA male >500 |
| |
|
| Material Data |

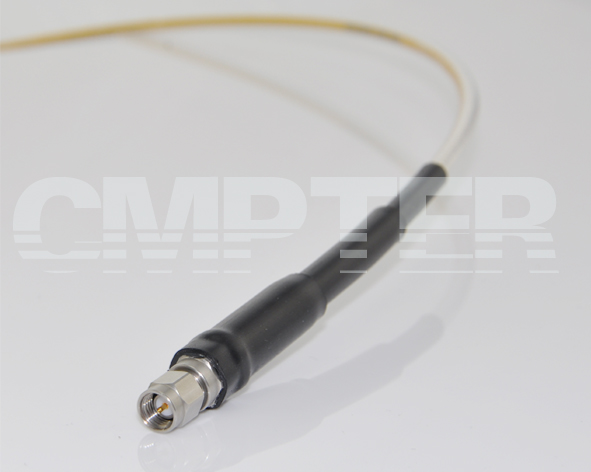

| Connector 1: SMA Straight Male Solder for CTA-485 Cable [60-03-2M60-179] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI, PTFE |
|
| |

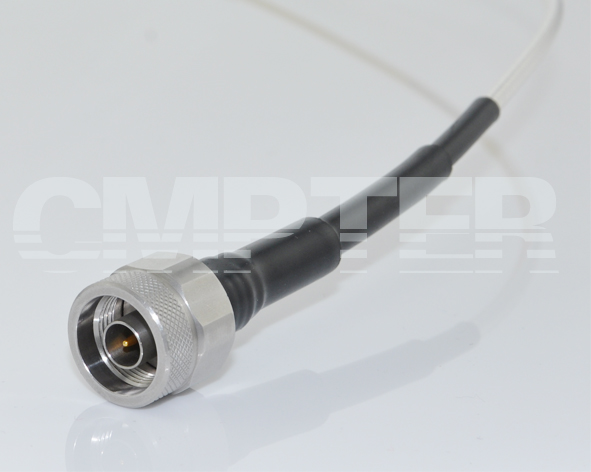

| Connector 1: N Straight Male Solder for CTA-485 Cable [50-03-2M60-110] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI, PTFE |
|
