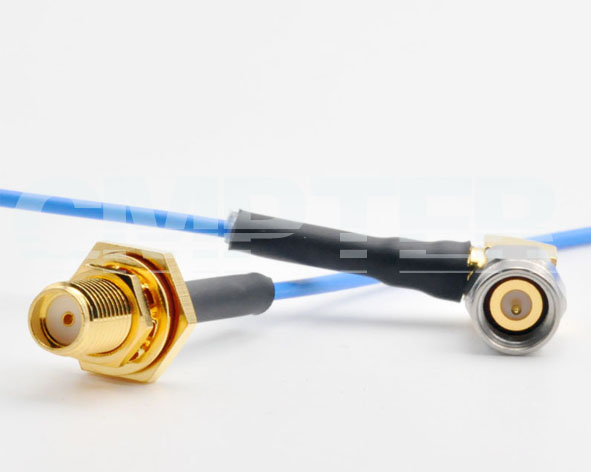

SMA Right Angle Male to SMA Waterproof Bulkhead Female for HF.047 Cable Assembly
PN: CA047HF-SMARAM-SMAFBW-XXX-XXX
PRODUCT OVERVIEW
| Series: |
SMA waterproof female to SMA Right Angle Male for .047 cable, DC to 18GHz |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 18 GHz |
| Withstanding Voltage: |
≥500 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
20g |
| Durability (Matings): |
SMA Female >500 |
| SMA Right Angle Male >500 |
| |
|
| Material Data |
| Connector 1: SMA Right Angle Male Connector Solder for .047 Cable[P/N: 60-13-2M16-436] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Coupling Nut: |
Stainless steel |
passivated |
| Insulator: |
PTFE |
|
| Connector 2: SMA Waterproof Female Connector Solder for .047 Cable [P/N: 60-02-2D16-158] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Becu |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Coupling Nut: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
