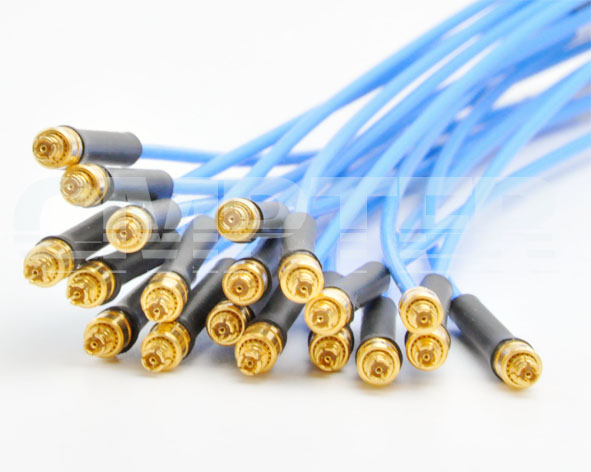

RF Cable Assembly

SSMP Female to SSMP Female solder for .047 FEP Cable, DC to 18GHz

PN: CA047HF-SSMPF-SSMPF-30cm-3471
CA047-3471-001
PRODUCT OVERVIEW
Series: SSMP female to SSMP female for .047 cable, DC to 18GHz
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18 GHz
    Withstanding Voltage: ≥500 V
    Temperature Range: -55 °C ~ +125 °C
    Weight: 20g
    Durability (Matings):
    SSMP  female >500

    Material Data
    Connector 1: SSMP female Connector Solder for .047 Cable [P/N: 77-02-2M16-021]
    Piece Part Base Material Plating
    Center Contact: Becu Gold-plated (Nickel underplated)
    Body: Brass Gold-plated (Nickel underplated)
    Insulator: PTFE
