RF Cable Assembly

N Male to N Male Solder for CTFB-500 Test Cable Assembly, 2 Meters

PN: CA500TB-NM-NM-2M-2347

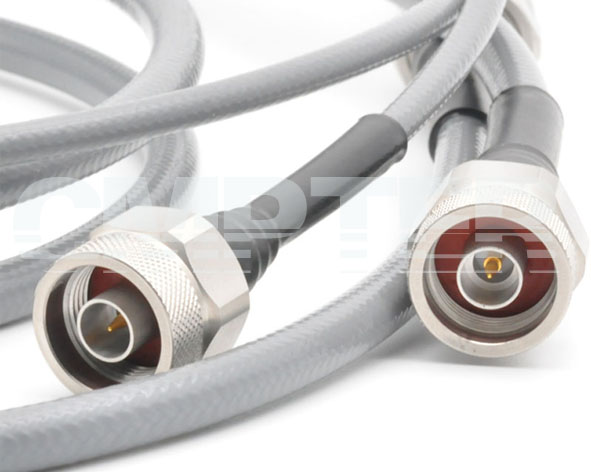

CA500TB-NM-NM-2M-2347-01
PRODUCT OVERVIEW
Series: Type N male to N male for CTFB-500 cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18 GHz
    VSWR ≤1.30
    Temperature Range: -55 °C ~ +125 °C
    Weight: 500g
    Durability (Matings): Type N female >500
      type N male >500

    Material Data
    N Male Connector Solder for CTFB-500 cable [PN: 50-03-2M68-148]
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PTFE
