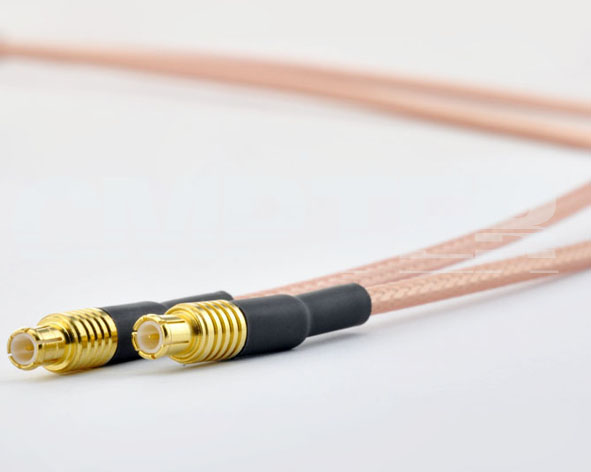

MCX Male to MCX Male crimp for RG316 Cable assembly, DC to 3GHz
PN: CA316-MCXM-MCXM-XXX-XXX
PRODUCT OVERVIEW
| Series: |
MCX Male connector for RG316 cable assembly |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
7g |
| Durability (Matings): |
MCX Male >500 |
| |
|
| Connectors: MCX Male connector Crimp for LMR100/RG174/RG316 Cable [P/N: 30-13-1M00-016] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass & Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
