RF Cable Assembly

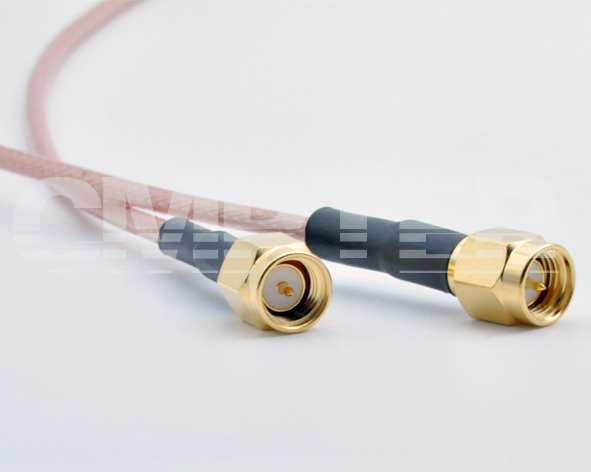

SMA male to SMA male connector for RG316 cable, 3meters length

PN: CA316-SMAM-SMAM-3M-2053
CA316-2053-001
PRODUCT OVERVIEW
Series: SMA Male connector crimp for RG316 cable assembly
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥335 V
    Temperature Range: -55 °C ~ +125 °C
    Weight: 100g
    Durability (Matings): SMA Male >500

    Material Data
    Connector 1: SMA male connector Crimp for LMR100/RG174/RG316 Cable,  [P/N: 60-03-1M00-003]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass Gold-plated (Nickel underplated)
    Coulping Nut: Brass Gold-plated (Nickel underplated)
    Insulator: PTFE
