RF Cable Assembly

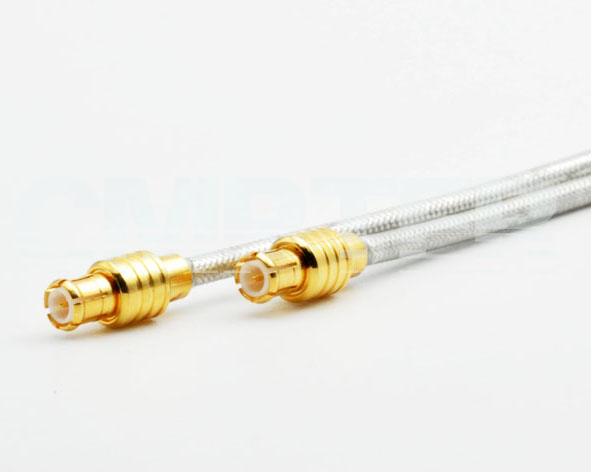

MCX male solder for HF086 RG405 cable assembly

PN: CA086HF-MCXM-NONE-170mm-1904
CA086-MCX-01
PRODUCT OVERVIEW
Series: MCX Male connector solder for RG405 HF086 cable assembly
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥250 V
    Temperature Range: -55 °C ~ +125 °C
    Weight: 7g
    Durability (Matings): MCX Male >500

    Material Data
    Connectors: MCX Male connector Solder for RG405 HF086 Cable [P/N: 30-03-2M11-004]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass & Phosphor Bronze Gold-plated (Nickel underplated)
    Insulator: PTFE
