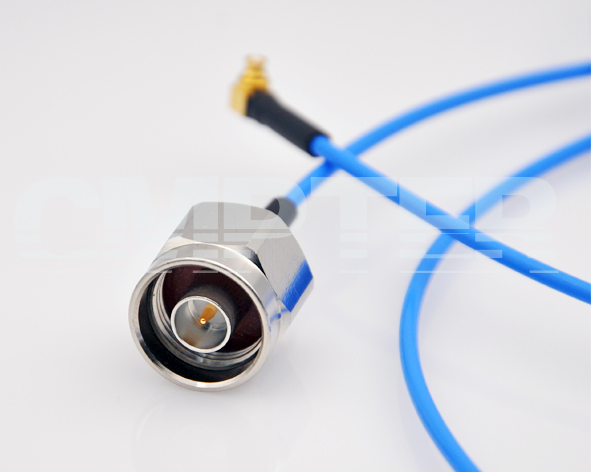

N Male to SMP Right Angle Female for.086 Hand-Formable Cable, DC to 18GHz.
PN: CA086HF-NM-SMPRAF-1M-5349
PRODUCT OVERVIEW
| Series: |
N male to SMP Right angle Female for .086 cable with blue jacket, DC to 18GHz |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 18 GHz |
| VSWR |
≤1.25 |
| Temperature Range: |
-55 °C ~ +165 °C |
| Weight: |
100g |
| Durability (Matings): |
SMA male >500 |
| |
SMP female >500 |
| Material Data |
| Connectors 1: N Straight Male Solder for RG405/.085/.086 Cable[P/N: 50-03-2M11-382] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Coupling Nut: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| Connectors 2: SMP Right Angle female Solder for RG405/.085/.086 Cable[P/N: 78-12-2M11-005] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Becu |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
