PN: CA316-NF4H-MCXRAM-65cm-531

Cable Assembly, N Straight Female 4 Hole Flange to MCX Right Angle Male, RG316 Cable, 65cm

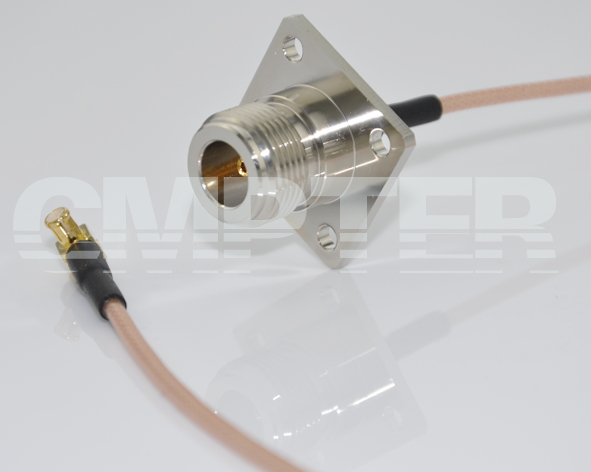

CA316-NF4H-MCXRAM-65cm-531-02
PRODUCT OVERVIEW
Series: N 4 Hole Flange to MCX Right Angle Male for RG316 cable
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Withstanding Voltage: ≥250 V
Temperature Range: -55 °C ~ +125 °C
Weight: 43g
Durability (Matings): N 4 Hole flange Female >500
MCX Right Angle Male >500

Material Data
Connector 1: N Straight Female Crimp for LMR100/RG174/RG316 Cable, 4 Hole Flange Panel Mount  [P/N: 50-02-8F00-076]
Piece Part Base Material Plating
Center Contact: Phosphor Bronze Gold-plated (Nickel underplated)
Body: Brass Nickel plated
Insulator: PTFE

Connector 2: MCX Right Angle Male Crimp for LMR100/RG174/RG316 Cable [P/N: 30-13-1M00-005]
Piece Part Base Material Plating
Center Contact: Brass Gold-plated (Nickel underplated)
Body: Brass & Phosphor Bronze Gold-plated (Nickel underplated)
Insulator: PTFE
