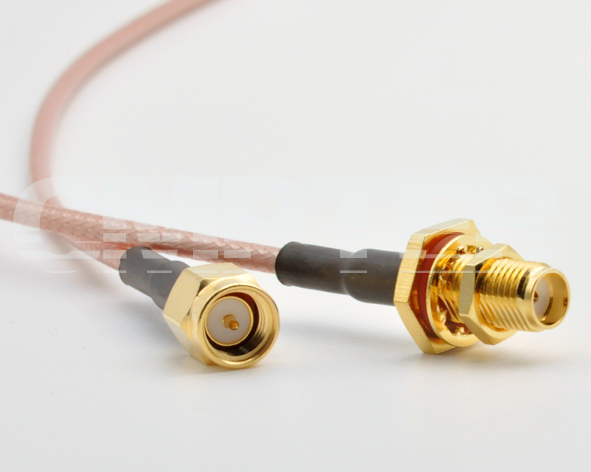

SMA Male to SMA Waterproof Bulkhead Female RG316 Cable Assembly, 50cm
PN: CA316-SMAM-SMAFBW-50cm-388
PRODUCT OVERVIEW
| Series: |
SMA Male to SMA waterproof Bulkhead Female for RG316 cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Withstanding Voltage: |
≥335 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
17g |
| Durability (Matings): |
SMA Male >500 |
| SMA Bulkhead Female >500 |
| |
|
| Material Data |
| Connector 1: SMA male Crimp for LMR100/RG174/RG316 Cable, [P/N: 60-03-1M00-003] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Coulping Nut: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| Connector 2: SMA Straight Waterproof Bulkhead Female Crimp for LMR100/RG174/RG316 Cable [P/N: 60-02-1B00-020] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Fastening Nut: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| |
|
|
