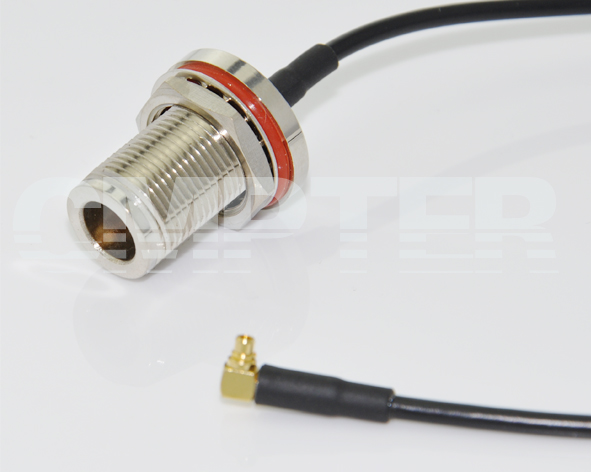

N Waterproof Bulkhead Female to MMCX Right Angle Male RG174 Cable Assembly, 30cm
PN: CA174-NFBW-MMCXRAM-30cm-254
PRODUCT OVERVIEW
| Series: |
N Bulkhead Female to MMCX Right Angle Male for RG174 cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
41g |
| Durability (Matings): |
N bulkhead Female >500 |
| MMCX Right Angle Male >500 |
| |
|
| Material Data |
| Connector 1: N Straight Waterproof Bulkhead Female Crimp for RG174/RG316/LMR100 [P/N: 50-02-1D00-029] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel Plated |
| Insulator: |
PTFE |
|
| Connector 2: MMCX Right Angle Male Crimp for RG174/RG316/LMR100 Cable [P/N: 31-13-1M04-011] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass & Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
