RF Cable Assembly

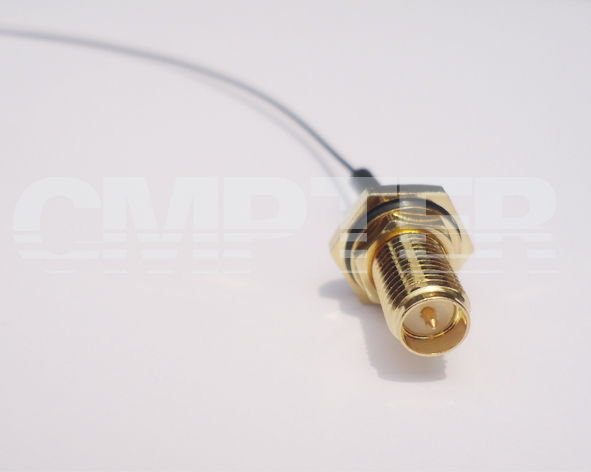

RP SMA Waterproof Bulkhead Female to WFL/MHF III Right Angle Plug MIC0.81 Cable

PN: CA081-RPSMAFBW-WFL-180mm-361
CA081-RPSMAFBW-UFL-180mm-361-02
PRODUCT OVERVIEW
Series: RPSMA Bulkhead Female to W.FL for 0.81mm cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥250 V
    Temperature Range: -40 °C ~ +90 °C
    Weight: 5g
    Durability (Matings): RPSMA Bulkhead Female >500
    U.FL connector >30

    Material Data
    Connector 1:  RP SMA Straight Waterproof Bulkhead Female Solder for 0.81mm Cable  [P/N: 61-02-2D35-021]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass Gold-plated (Nickel underplated)
    washer: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Insulator: PTFE

    Connector 2: U.FL/MHF Right Angle Plug
