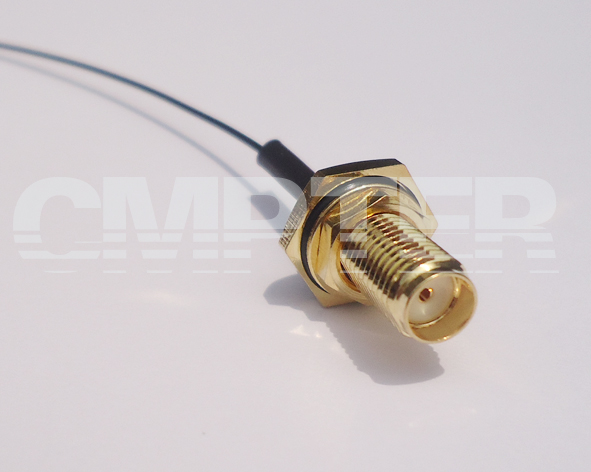

SMA Waterproof Bulkhead Female to UFL/MHF Right Angle Plug MIC0.86 Cable Assembl
PN: CA081-SMAFBW-UFL-180mm-350
PRODUCT OVERVIEW
Series: |
SMA Bulkhead Female to U.FL for 0.81mm cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 3 GHz |
Withstanding Voltage: |
≥250 V |
Temperature Range: |
-40 °C ~ +90 °C |
Weight: |
5g |
Durability (Matings): |
SMA Bulkhead Female >500 |
U.FL connector >30 |
|
|
Material Data |
Connector 1: SMA Straight Waterproof Bulkhead Female Solder for 0.81mm Cable [PN: 60-02-2D35-162] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Gold-plated (Nickel underplated) |
washer: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Insulator: |
PTFE |
|
Connector 2: U.FL/MHF Right Angle Plug |
