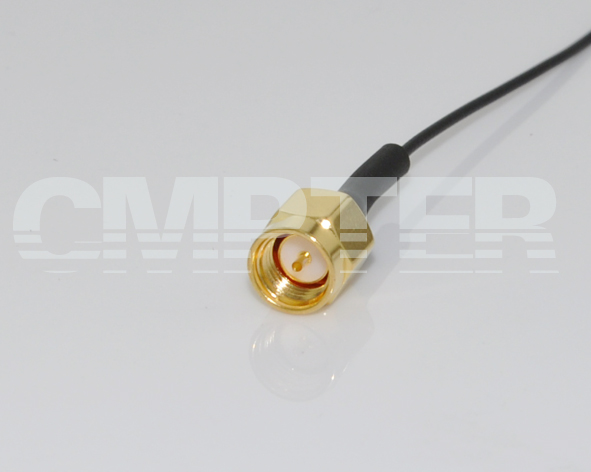

SMA Male to UFL/MHF Right Angle Plug MIC1.13 Cable Assembly, 150mm
PN: CA113-SMAM-UFL-150mm-655
PRODUCT OVERVIEW
| Series: |
SMA Male to U.FL for 1.13mm cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-40 °C ~ +90 °C |
| Weight: |
3.5g |
| Durability (Matings): |
SMA Male >500 |
| U.FL connector >30 |
| |
|
| Material Data |
| Connector 1: SMA Straight Male Solder for Mini Coaxial 1.13mm/1.32mm/1.37mm Cable [P/N: 60-03-2M23-189] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| Connector 2: U.FL/MHF Right Angle Plug |
