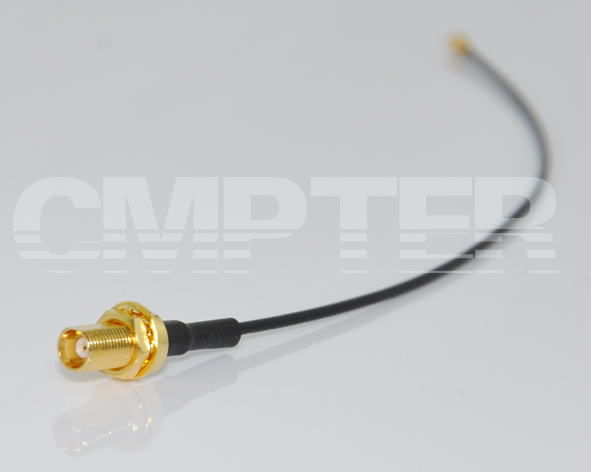

MCX Bulkhead Female to U.FL/MHF Right Angle Plug MIC1.37 Cable Assembly, 180mm
PN: CA137-MCXFB-UFL-180mm-905
PRODUCT OVERVIEW
Series: |
MCX Bulkhead Female to U.FL for 1.37mm cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 3 GHz |
Withstanding Voltage: |
≥250 V |
Temperature Range: |
-40 °C ~ +90 °C |
Weight: |
2.5g |
Durability (Matings): |
MCX Bulkhead Female >500 |
U.FL connector >30 |
|
|
Material Data |
Connector 1: MCX Straight Bulkhead Female Crimp for 1.37mm Cable [P/N: 30-02-1B23-030] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Gold-plated (Nickel underplated) |
washer: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Insulator: |
PTFE |
|
Connector 2: U.FL/MHF Right Angle Plug |
