RF Cable Assembly

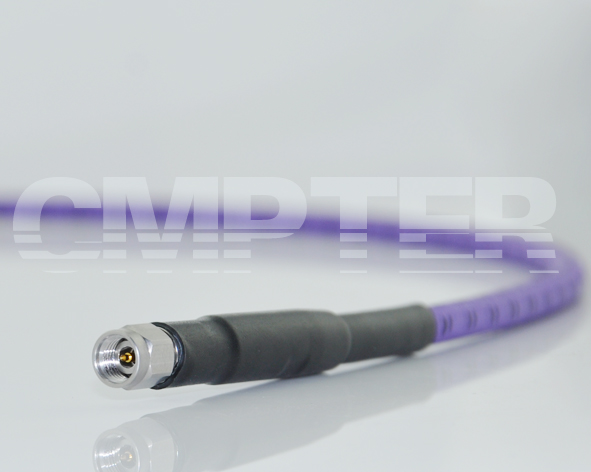

2.92mm Male to 2.92mm Male Clamp CTAL-520 Test Cable assembly, DC to 40GHz

PN: CA520AL-2.92M-2.92M-70cm-1284
CA520AL-2
PRODUCT OVERVIEW
Series: 2.92 male to 2.92 Male for 520AL cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 40 GHz
    VSWR ≤1.30
    Temperature Range: -55 °C ~ +125 °C
    Weight: 110g
    Durability (Matings): 2.92mm male >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
