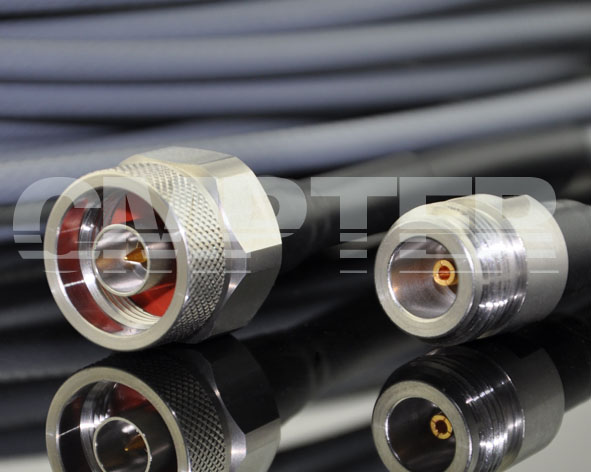

N Male to N Female Crimp CTFB-500 Test Cable Assembly, 10 Meters
PN: CA500TB-NM-NF-10M-2626
PRODUCT OVERVIEW
| Series: |
Type N male to Type N female for CTFB-500 cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 18 GHz |
| VSWR |
≤1.30 |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
2kg |
| Durability (Matings): |
Type N female >500 |
| |
type N male >500 |
| |
|
| Material Data |
| N Straight Male Solder for CTFB-500 cable [PN: 50-03-2M68-148] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PTFE |
|
|
N Straight Female Solder for CTFB-500 Cable [PN: 50-02-2M26-156]
|
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PTFE |
|
