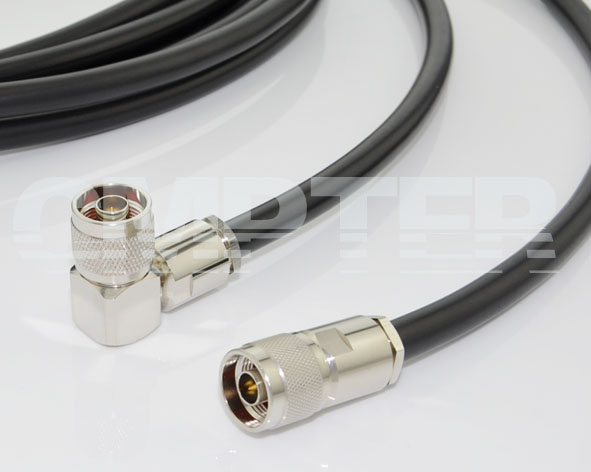

N Male to N Right Angle Male Clamp LLC400-UF Ultraflex Cable
PN: CA400U-NM-NRAM-4M-660
PRODUCT OVERVIEW
Series: |
N Male to N Right Angle Male for LMR400 Ultra flexible cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50 Ohm |
Frequency Range: |
0 ~ 3 GHz |
Withstanding Voltage: |
≥1000 V |
Temperature Range: |
-25 °C ~ +70 °C |
Weight: |
2000g |
Durability (Matings): |
N-type Male >500 |
|
N-type Right Angle Male >500 |
Material Data |

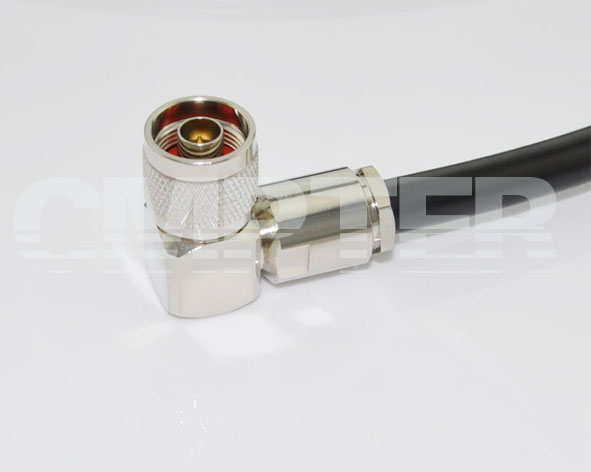

Connectors: N Right Angle Male Clamp for LMR400/RG214 Cable [P/N: 50-13-4M01-020] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel plated |
Coupling Nut: |
Brass |
Nickel Plated |
Insulator: |
PTFE |
|
|
Connectors: N Straight Male Clamp for LMR400/RG214 Cable [P/N: 50-03-4M01-012] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel plated |
Coupling Nut: |
Brass |
Nickel Plated |
Insulator: |
PTFE |
|
