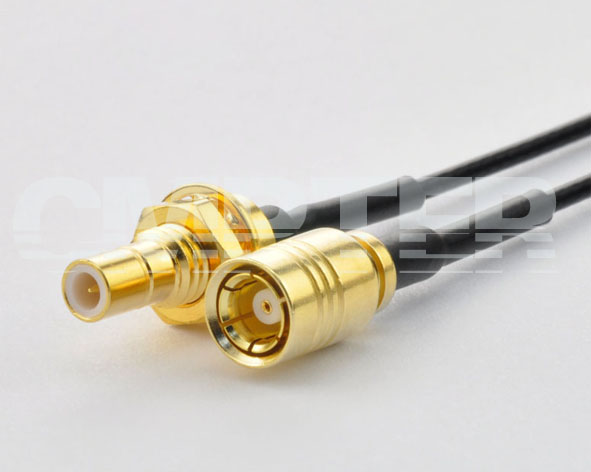

SMB Bulkhead Jack (Male Center Contact) to SMB Male solder 1.37mm Cable
PN: CA137-SMBFB-SMBM-150mm-2536
PRODUCT OVERVIEW
| Series: |
SMB Bulkhead jack to SMB plug for 1.37mm cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
50g |
| Durability (Matings): |
SMB Jack >500 |
| |
SMB Plug >500 |

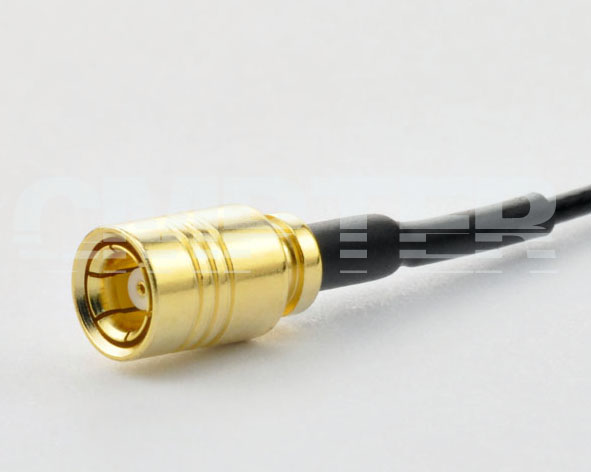

| Connectors: SMB Straight Plug (Female Center Contact) Solder for 1.37mm [P/N: 70-03-2M23-101] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Outer Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| |

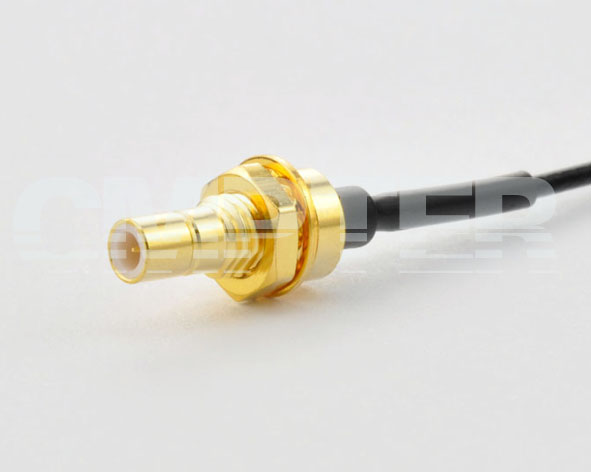

| Connectors: SMB Bulkhead Jack (Male Center Contact) Solder for 1.37mm [P/N: 70-02-2B23-100] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
