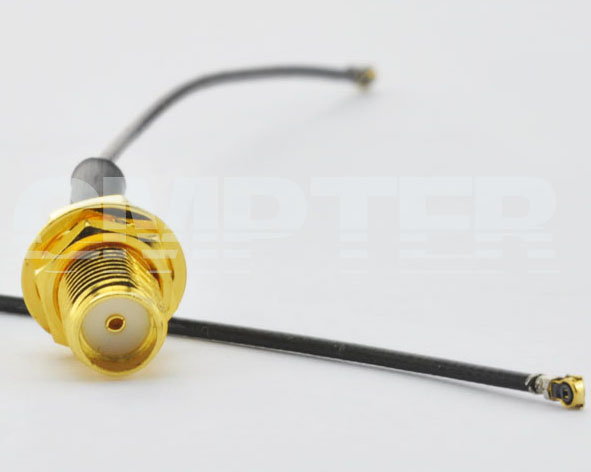

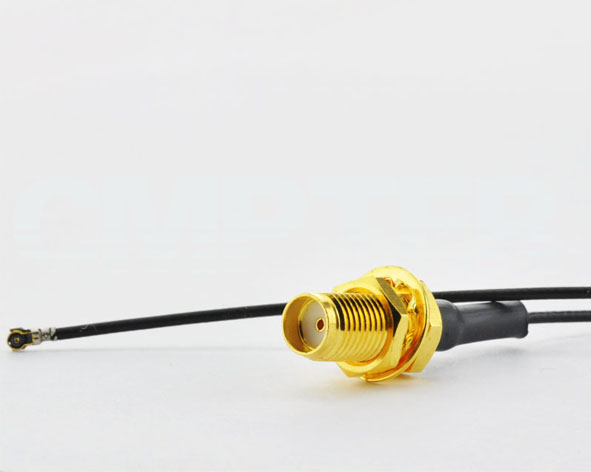

SMA female bulkhed to U.FL/IPEX solder 1.13mm cable, DC to 12.4GHz
PN: CA113-SMAFB-U.FL-100mm-XXXX
PRODUCT OVERVIEW
| Series: |
SMA Bulkhead Female to U.FL for 1.13mm cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 12.4 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-40 °C ~ +90 °C |
| Weight: |
3.8g |
| Durability (Matings): |
SMA Bulkhead Female >500 |
| U.FL connector >30 |
| |
|
| Material Data |
| Connector 1: SMA Straight Bulkhead Female Connector |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| washer: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| Connector 2: U.FL/MHF Right Angle Plug |
