RF Cable Assembly

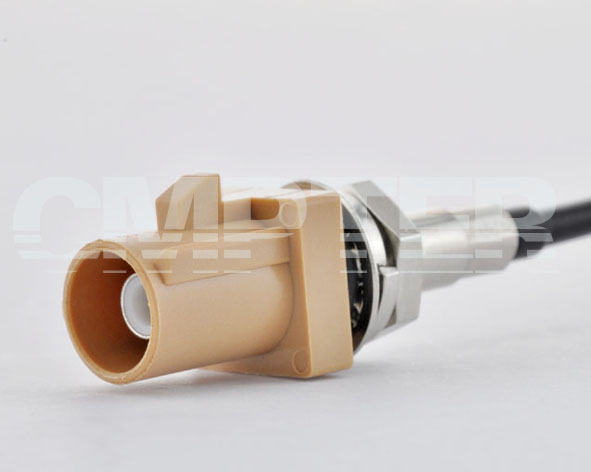

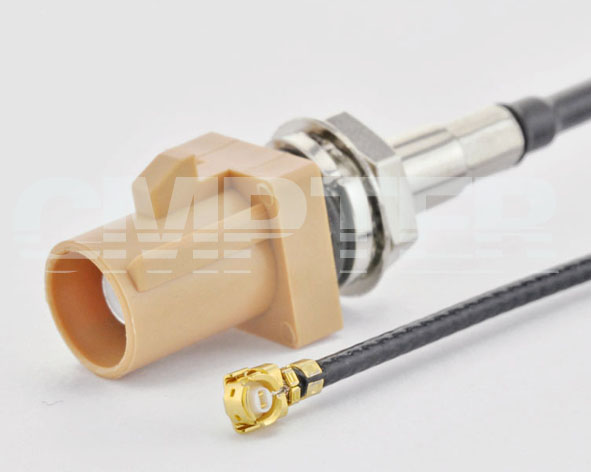

FAKRA "I" Type SMB to UFL/MHF Right Angle Plug solder 1.37mm Cable

PN: CA137-FKSMBF-UFL-20cm-2794
CA137-2794-01
CA137-2794-03
PRODUCT OVERVIEW
Series: Fakra D type SMB to U.FL solder 1.37mm cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥250 V
    Temperature Range: -55 °C ~ +125 °C
    Weight: 50g
    Durability (Matings): SMB Jack >500
    Material Data
    Connectors: FAKRA SMB Straight Bulkhead Jack Crimp for 1.37mm Cable  [P/N: 70-03-1A23-123D]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass   Gold-plated (Nickel underplated)
    Outer Contact: Phosphor Bronze Gold-plated (Nickel underplated)
    Insulator: PTFE

    Connector 2: U.FL/MHF Right Angle Plug
