PN: TP-SMAF-004

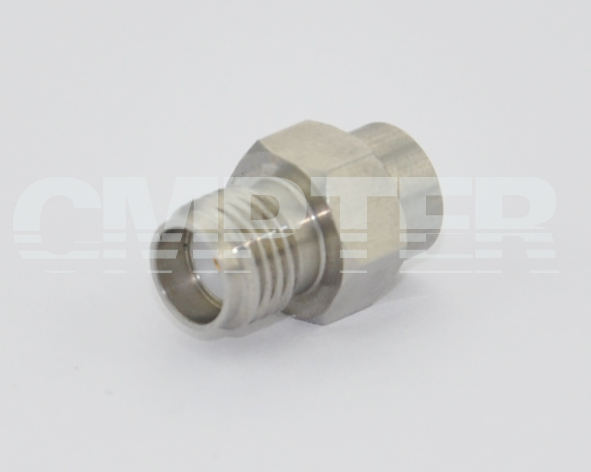

Precision SMA Female Termination, 1W, 18GHz
TP-SMAF-004-02
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Female
Interface Standards: MIL-STD-348A
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Gender: Female
Frequency range: DC to 18 GHz
VSWR: ≤1.15
Averange Power: 1 W
Temperature range:   -55 °C ~ +125 °C
weight:  2.8g
Durability (matings):  >500

Material Data
Piece Part Base Material Plating
Center contact Beryllium Copper Alloy Gold plating (Nickel underplated)
Body Stainless Steel (SU303) Passivated
