PN: TP-2.92M-016

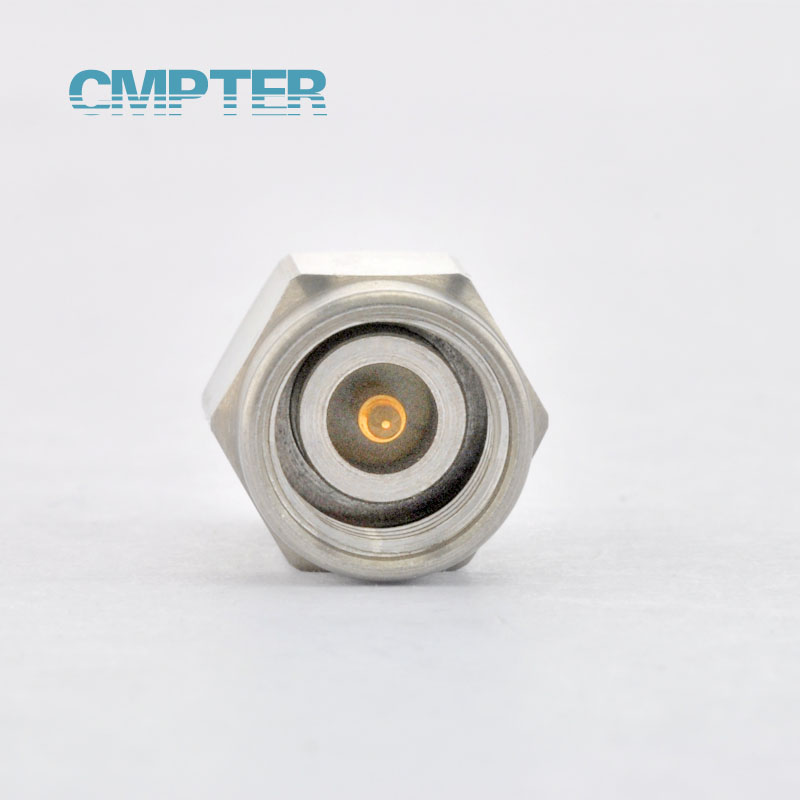

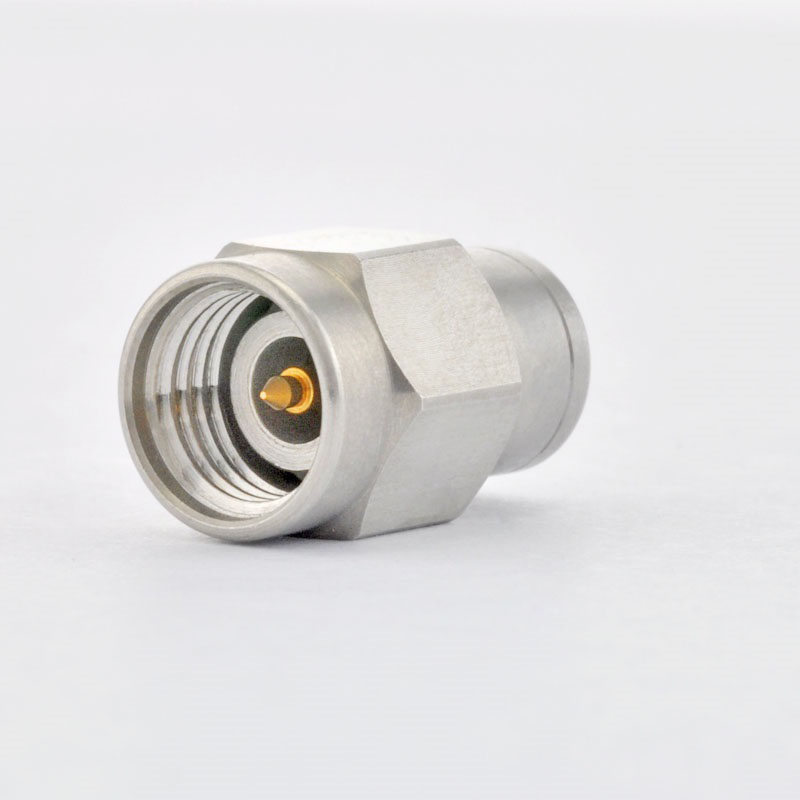

Precision 2.92mm Male Termination, 1W, 40GHz
TP-2
PRODUCT OVERVIEW
Interface Type: 2.92mm
Gender: Male
Interface Standards: IEC 60169
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Gender: Male
Frequency range: DC to 40GHz
VSWR: 1.20:1
Averange Power: 1 W
Temperature range:   -55 °C ~ +125 °C
weight:  3.2g
Durability (matings):  >500

Material Data
Piece Part Base Material Plating
Center contact Beryllium Copper Alloy Gold plating (Nickel underplated)
Body Stainless Steel (SU303) Passivated
