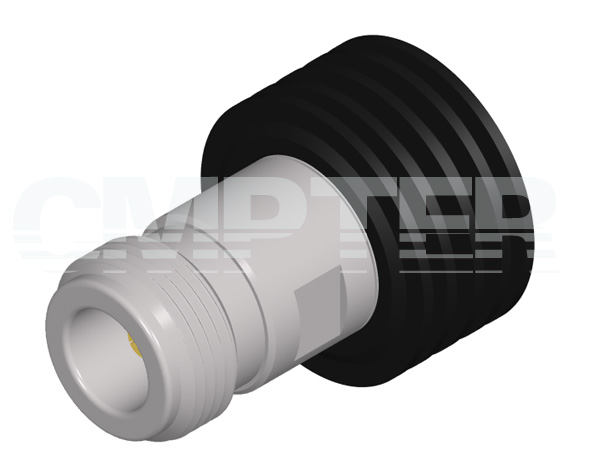

RF Coaxial Termination

N Female Termination, 5 Watts, DC to 6GHz

PN: T-NF-023
T-NF-023-02
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Female
Interface Standards: MIL-STD-348A
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Gender: Female
    Frequency range: DC to 6 GHz
    VSWR: ≤1.25
    Averange Power: 5 W
    Temperature range:   -55 °C ~ +125 °C
    weight:  38g
    Durability (matings):  >500

    Material Data
    Piece Part Base Material Plating
    Center contact Phosphor Bronze Gold plating (Nickel underplated)
    Body Brass Nickel plated
