RF Coaxial Termination

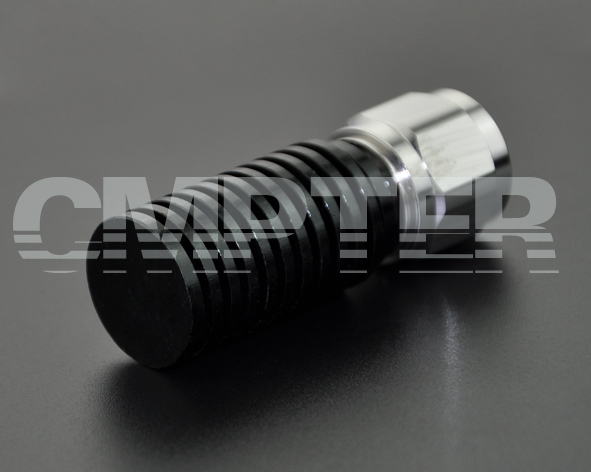

10 Watts N Male Termination, DC to 6GHz

PN: T-NM-067
T-NM-067-02
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Male
Interface Standards: MIL-STD-348A
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Gender: Male
    Frequency range: DC to 6 GHz
    VSWR: ≤1.25
    Averange Power: 10 W
    Temperature range:   -55 °C ~ +125 °C
    weight:  50g
    Durability (matings):  >500

    Material Data
    Piece Part Base Material Plating
    Center contact Brass Silver
    Body Brass Tri-Metal plated
