RF Coaxial Termination

1 Watt 2.92mm Female Precision Termination, DC to 40GHz

PN: TP-2.92F-017

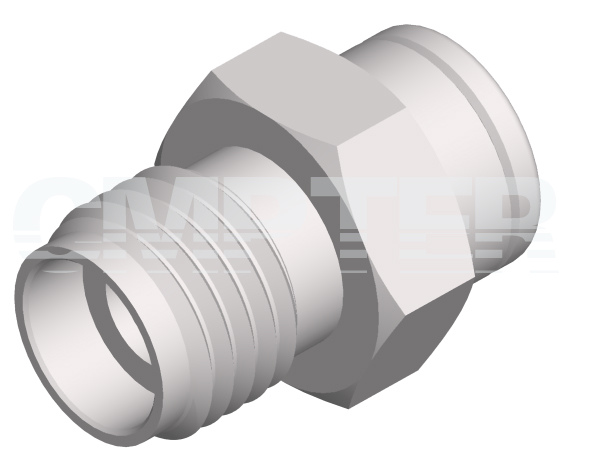

2.92mm female termination
PRODUCT OVERVIEW
Interface Type: 2.92mm
Gender: Female
Interface Standards: IEC 60169
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Gender: Female
    Frequency range: DC to 40GHz
    VSWR: 1.20:1
    Averange Power: 1 W
    Temperature range:   -55 °C ~ +125 °C
    weight:  3g
    Durability (matings):  >500

    Material Data
    Piece Part Base Material Plating
    Center contact Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body Stainless Steel (SU303) Passivated
