RF Coaxial Termination

SMA Female Termination, 1W, 18GHz

PN: T-SMAF-053

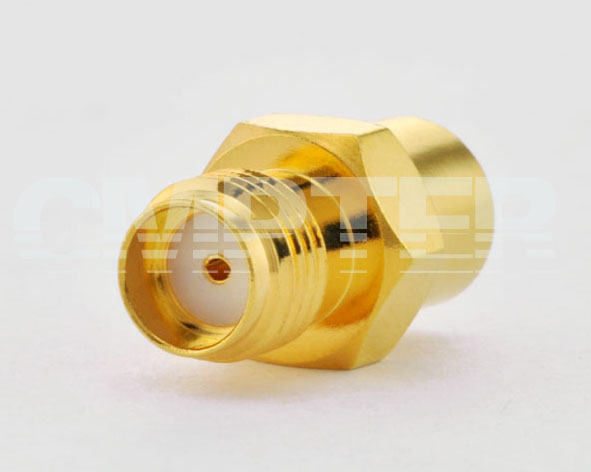

T-058-001

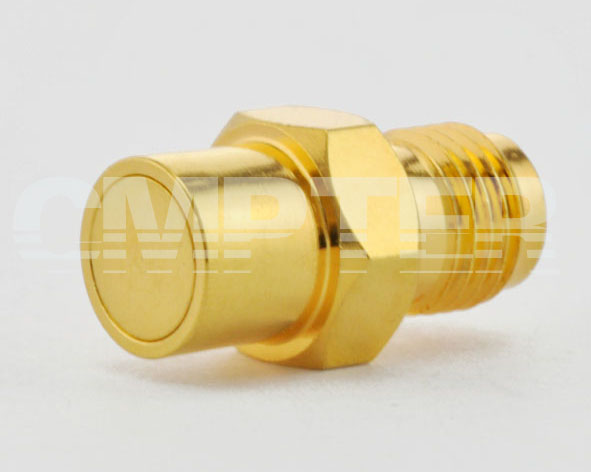

T-058-002
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Female
Interface Standards: MIL-STD-348A
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Gender: Female
    Frequency range: DC to 18 GHz
    VSWR: ≤1.30
    Averange Power: 1 W
    Temperature range:   -55 °C ~ +125 °C
    weight:  2.8g
    Durability (matings):  >500

    Material Data
    Piece Part Base Material Plating
    Center contact Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body Brass Gold plating (Nickel underplated)
