RF Coaxial Termination

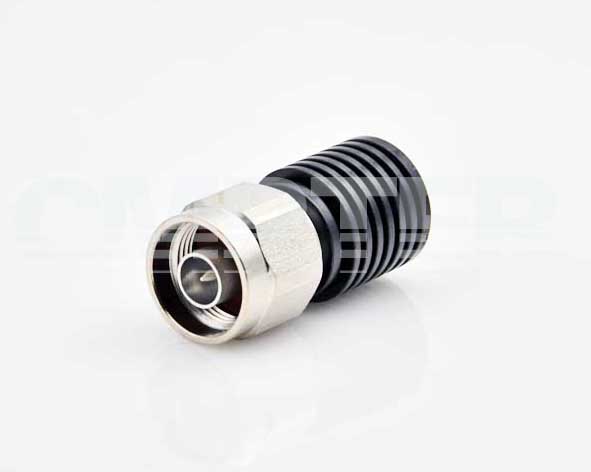

N Male Termination, 5 Watts, DC to 6GHz

PN: T-NM-022
T-NM-022-001
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Male
Interface Standards: MIL-STD-348A
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Gender: Female
Frequency range: DC to 6 GHz
VSWR: ≤1.25
Averange Power: 5 W
Temperature range:   -55 °C ~ +125 °C
weight:  38g
Durability (matings):  >500

Material Data
Piece Part Base Material Plating
Center contact Brass Gold plating (Nickel underplated)
Body Brass Nickel plated
