RF Coaxial Termination

Precision 3.5mm Female Termination, 1W, 27GHz

PN: TP-3.5F-006

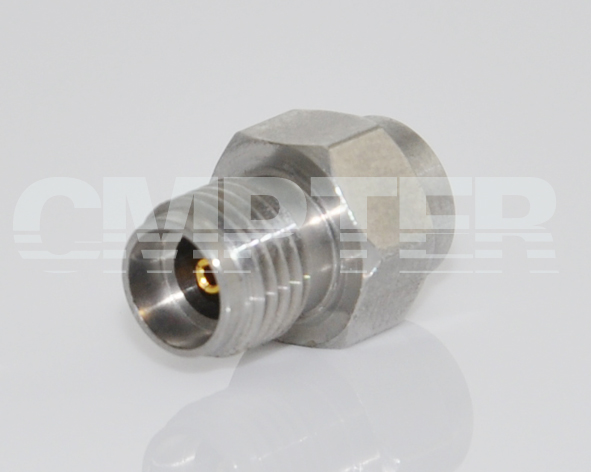

3.5mm female termination
PRODUCT OVERVIEW
Interface Type: 3.5mm
Gender: Female
Interface Standards: IEC60169
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Gender: Female
    Frequency range: DC to 27GHz
    VSWR: 1.15:1
    Averange Power: 1 W
    Temperature range:   -55 °C ~ +125 °C
    weight:  3g
    Durability (matings):  >500

    Material Data
    Piece Part Base Material Plating
    Center contact Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body Stainless Steel (SU303) Passivated
