RF Coaxial Cable

Low Loss Flexible 400 Cable Double Shielded with Black PVC Jacket

PN: LLC400
PRODUCT OVERVIEW
DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS

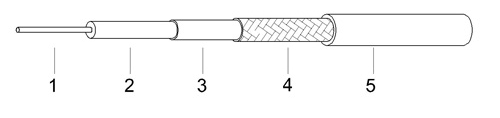

    Construction Specification
    Item Material Diamenter(mm)
    Inner Conductor Solid Copper 2.74
    Dielectric Physical Foam PE 7.24
    Outer Conductor Bonded Aluminum Foil 7.39
    Overall Braid Tinned Copper Braid 8.13
    Jacket Black PVC or PE 10.29

    Electrical Characteristics
    Capacitance (Pf/M)   77.1
    Impedance (Ohm)   50
    Velocity(%)   85
    Shielding Effectiveness (>dB)   90
    Voltage Withstand (Volts DC)   2500
    Min. Bend Radius (mm)   51
    Operating Temp. (℃)   -40 to 80
    RoHS   Compliant

    Attenuation (Typical)
    Frequency (MHz) Attenuation (>/dB/100m) Avg. Power (KW)
    30 2.20 2.91
    50 2.90 2.21
    150 5.00 1.28
    220 6.10 1.05
    450 8.90 0.72
    900 12.80 0.50
    1500 16.80 0.38
    1800 18.60 0.34
    2000 19.60 0.33
    2500 22.20 0.29
    3000 24.80 0.26
    5800 35.50 0.18
