RF Coaxial Cable

Semirigid Coax Cable 0.086 Diameter With Copper Outer Conductor

PN: SR086
PRODUCT OVERVIEW
DOWNLOADS
  • Data Sheet [PDF]
    • PRODUCT SPECIFICATIONS

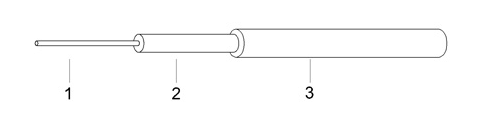

    Construction Specification
    Item Material Diamenter(mm)
    Inner Conductor Silver Played Copper Clad Steel 0.51
    Dielectric PTFE 1.68
    Outer Conductor 1. Copper Tube 2.20
    2. Tin Plated Copper Tube
    3. Silver plated copper tube

    Electrical Characteristics
    Capacitance (Pf/M)   95.1
    Impedance (Ohm)   50
    Cornoa Extinction Voltage(VRMS@60Hz) 1500
    Voltage Withstanding (VRMS@60Hz) 5000
    Moding Frequency (GHz)   61
    Outer Conductor Intefrity Temp. (℃) 175
    Min. inside Bending Radius (mm)   7.63
    Operating Temp. (℃)   -55 to 125
    RoHS   Compliant

    Attenuation & Average Power @ 20 ℃ at Sea Level
    Frequency (GHz) Attenuation (>/dB/100m) Power 1 / 2 / 3 (Watts CW)
    0.5 45.0 323.0 / 190.3 / 173.5
    1.0 64.0 162.4 / 133.2 / 121.5
    5.0 151.0 69.8 / 57.2/ 52.2
    10.0 222.0 47.9 / 39.3 / 35.8
    20.0 329.0 32.6 / 26.7 / 24.3
