PhaseFlex Test cable, CTAL520

PN: CTAL520
520-01
PRODUCT OVERVIEW
Phase test Test cable with Durable, reliable performance, Typical Applications:

  1. Portable analyzers
  2. Test rack systems
  3. Vector network analyzers
  4. Scalar network analyzers
  5. Antenna ranges
  6. Automated test equipment
  7. Electromagnetic compliance testing
  8. Wireless telecommunication module testing

DOWNLOADS
PRODUCT SPECIFICATIONS

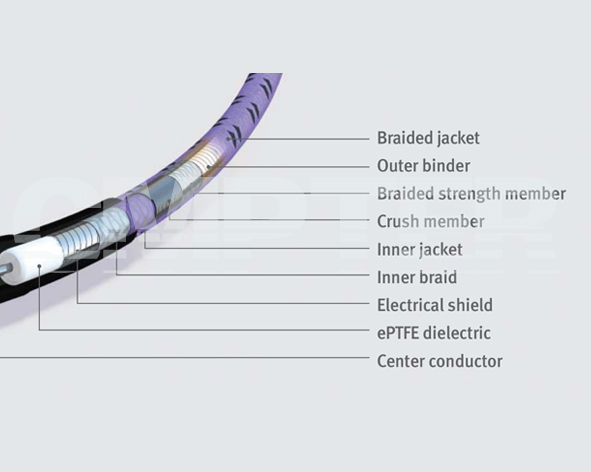

Construction Specification
Item   Diamenter(mm)
Out Jackt   5.20mm
Resist Compression   100N/25mm
Min. Bending Radius Static(mm) 25.00
Connect Retentivity   >175lbs
Mating   >10.000
Temp(℃)   -40 ~ 150

Attenuation @ 25
Frequency (GHz)   dB/100M
2   62.18
6   108.80
10   141.47
 18.5 191.82
26.5 234.80
40   291.75

Attenuation & Average Power @ 25 ℃
Frequency (GHz)   Watts (max)
2   187
6   202
10   126
18.5   93
26.5   76
40   61
