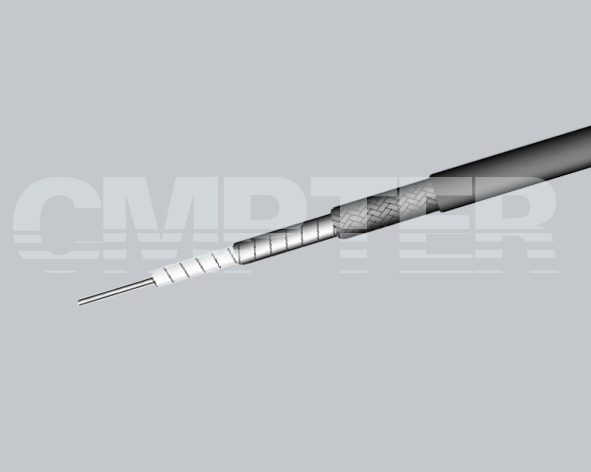

Low Loss Phase RF cable CTAD-220
PRODUCT OVERVIEW
Phase test Test cable with Durable, reliable performance, Typical Applications：
- Portable analyzers
- Test rack systems
- Vector network analyzers
- Scalar network analyzers
- Antenna ranges
- Automated test equipment
- Electromagnetic compliance testing
- Wireless telecommunication module testing
DOWNLOADS
PRODUCT SPECIFICATIONS
| Construction Specification |
|
| Item |
|
Diamenter(mm) |
| Out Jackt |
|
2.20mm |
| Shielding Efficiency(dB) |
|
>90 |
| Min. Bending Radius Static(mm) |
11.00 |
| Temp., Phase, -40 to +85° |
|
780PPM |
| VSWR |
|
≤1.35 |
| Temp(℃) |
|
-55 ~ 125 |
| Attenuation (@25℃&VSWR=1.0) and transmission power(@40℃&One standard atmosphere) |
| Frequency (MHz) |
dB/100M |
Average Power (KW) |
| 300 |
34.3 |
0.510 |
| 1000 |
63.3 |
0.277 |
| 2000 |
90.3 |
0.194 |
| 4000 |
129.3 |
0.135 |
| 6000 |
159.8 |
0.110 |
| 8000 |
185.9 |
0.094 |
| 10000 |
209.3 |
0.084 |
| 12000 |
230.7 |
0.076 |
| 14000 |
250.5 |
0.070 |
| 16000 |
269.2 |
0.065 |
| 18000 |
286.9 |
0.061 |
| 40000 |
445.2 |
0.039 |
Note: K1=1.9600000, K2=0.0013300 Formulas=K1*√FMhz+K2*FMHz
