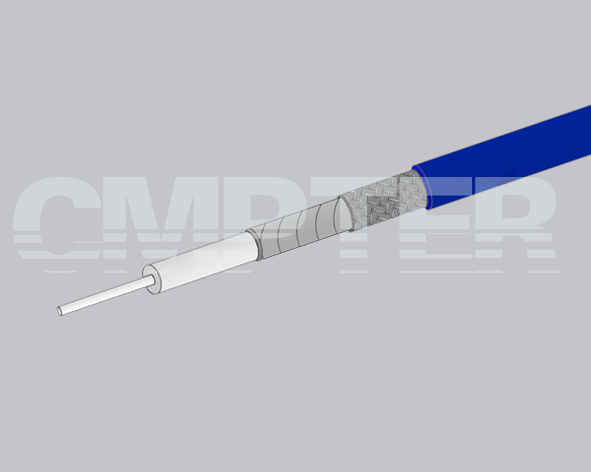

High Performance Flexible RF cable CTFC-280
PRODUCT OVERVIEW
High Performance RF cable CTFC-280, Typical Applications：
- Test rack systems
- Vector network analyzers
- Scalar network analyzers
- Antenna ranges
- Automated test equipment
- Electromagnetic compliance testing
- Wireless telecommunication module testing
DOWNLOADS
PRODUCT SPECIFICATIONS
| Construction Specification |
|
| Item |
|
Diamenter(mm) |
| Out Jackt |
|
2.80mm |
| Shielding Efficiency(dB) |
|
>90 |
| Min. Bending Radius Static(mm) |
14.00 |
| Velocity(%) |
|
70% |
| Temp(℃) |
|
-55 ~ 165 |
| Attenuation (@25℃&VSWR=1.0) and transmission power(@40℃&One standard atmosphere) |
| Frequency (MHz) |
dB/100M |
Average Power (KW) |
| 30 |
11.44 |
0.605 |
| 50 |
14.81 |
0.467 |
| 100 |
21.06 |
0.329 |
| 300 |
36.98 |
0.187 |
| 500 |
48.19 |
0.144 |
| 900 |
65.55 |
0.106 |
| 1000 |
69.30 |
0.100 |
| 1500 |
85.96 |
0.081 |
| 2000 |
100.31 |
0.069 |
| 3000 |
125.02 |
0.055 |
| 4000 |
146.47 |
0.047 |
| 5000 |
165.84 |
0.042 |
| 6000 |
183.73 |
0.038 |
| 8000 |
216.37 |
0.032 |
| 10000 |
246.06 |
0.028 |
| 12000 |
273.66 |
0.025 |
| 12400 |
278.98 |
0.025 |
| 13500 |
293.30 |
0.024 |
| 15000 |
321.20 |
0.022 |
| 18000 |
348.17 |
0.020 |
| 24000 |
414.70 |
0.017 |
| 26500 |
440.80 |
0.016 |
Note: K1=2.0669291, K2=0.003937 Formulas=K1*√FMhz+K2*FMHz
