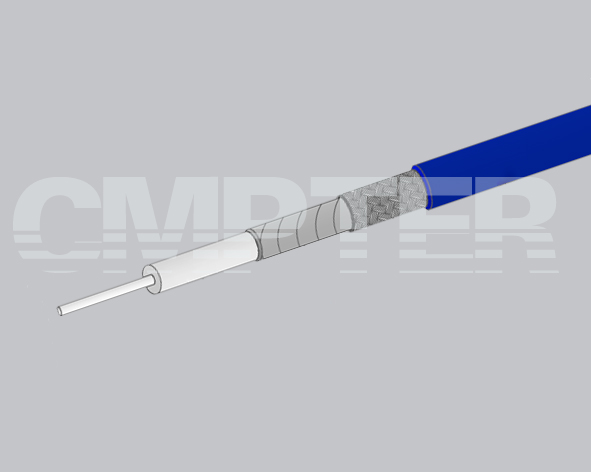

High Performance Flexible RF cable CTFC-400
PRODUCT OVERVIEW
High Performance RF cable CTFC-400, Typical Applications：
- Test rack systems
- Vector network analyzers
- Scalar network analyzers
- Antenna ranges
- Automated test equipment
- Electromagnetic compliance testing
- Wireless telecommunication module testing
DOWNLOADS
PRODUCT SPECIFICATIONS
| Construction Specification |
|
| Item |
|
Diamenter(mm) |
| Out Jackt |
|
4.00mm |
| Shielding Efficiency(dB) |
|
>90 |
| Min. Bending Radius Static(mm) |
20.00 |
| Velocity(%) |
|
70% |
| Temp(℃) |
|
-55 ~ 165 |
| Attenuation (@25℃&VSWR=1.0) and transmission power(@40℃&One standard atmosphere) |
| Frequency (MHz) |
dB/100M |
Average Power (KW) |
| 30 |
6.05 |
1.687 |
| 50 |
7.85 |
1.300 |
| 100 |
11.22 |
0.910 |
| 300 |
19.93 |
0.512 |
| 500 |
26.17 |
0.390 |
| 900 |
36.02 |
0.283 |
| 1000 |
38.17 |
0.267 |
| 1500 |
47.83 |
0.213 |
| 2000 |
56.20 |
0.181 |
| 3000 |
71.10 |
0.144 |
| 4000 |
84.20 |
0.121 |
| 5000 |
96.22 |
0.106 |
| 6000 |
107.46 |
0.095 |
| 8000 |
128.31 |
0.080 |
| 10000 |
147.61 |
0.069 |
| 12000 |
165.81 |
0.062 |
| 12400 |
169.35 |
0.060 |
| 13500 |
178.91 |
0.057 |
| 15000 |
191.62 |
0.053 |
| 18000 |
216.09 |
0.047 |
| 24000 |
262.17 |
0.039 |
| 26500 |
280.53 |
0.036 |
Note: K1=1.0824000, K2=0.0039370 Formulas=K1*√FMhz+K2*FMHz
