Low Loss Phase Stable High Frequency Cable CTFB-500
PRODUCT OVERVIEW
CTFB-500 Typical Application:
- Military Radar
- Electronic Warfare
- Shipboard System
- Airborne Platform
- System Interconnection
- Radio Station
DOWNLOADS
PRODUCT SPECIFICATIONS

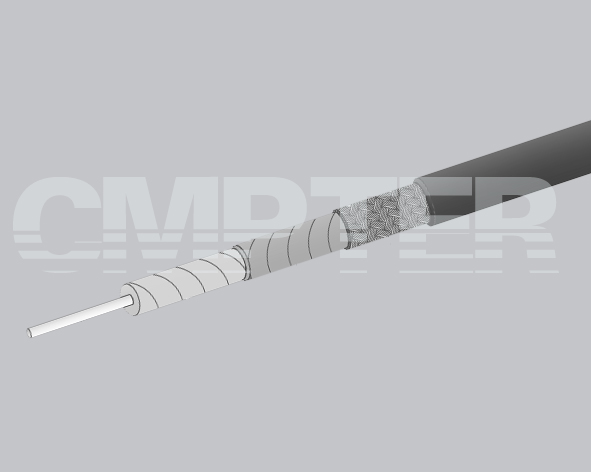

Construction Specification |
|
Item |
|
Diamenter(mm) |
Out Jackt |
|
3.60mm |
Shielding Efficiency(dB) |
|
>90 |
Min. Bending Radius Static(mm) |
18.00 |
Velocity(%) |
|
83% |
Temp(℃) |
|
-55 ~ 165 |
Attenuation (@25℃&VSWR=1.0) and transmission power(@40℃&One standard atmosphere) |
Frequency (MHz) |
dB/100M |
Average Power (KW) |
30 |
3.93 |
5.112 |
50 |
5.08 |
3.597 |
100 |
7.19 |
2.794 |
300 |
12.49 |
1.608 |
500 |
16.17 |
1.243 |
900 |
21.77 |
0.923 |
1000 |
22.96 |
0.875 |
1500 |
28.21 |
0.712 |
2000 |
32.66 |
0.615 |
3000 |
40.18 |
0.500 |
4000 |
46.58 |
0.431 |
5000 |
52.25 |
0.385 |
6000 |
57.40 |
0.350 |
8000 |
66.64 |
0.302 |
10000 |
74.85 |
0.268 |
12000 |
82.34 |
0.244 |
12400 |
83.76 |
0.240 |
13500 |
87.58 |
0.229 |
15000 |
92.57 |
0.217 |
18000 |
101.92 |
0.197 |
24000 |
118.75 |
0.169 |
26500 |
125.20 |
0.160 |
Note: K1=0.7156867, K2=0.0003280 Formulas=K1*√FMhz+K2*FMHz
